Device model：DC01-HJ01
Dimension： 1600x1000x1200mm
Lnner cabin size：750x500x600mm
▊ Product introduction
The battery environmental test chamber is suitable for all kinds of batteries, materials, electronic and electrical semi-finished products, finished products, etc. to carry out reliability tests in the environment of constant high and low temperature, gradual change, mutation, alternating, wet and heat test, and can be used with the charge and discharge cabinet to carry out high and low temperature charge and discharge test of experimental battery cells.
▊ Typical application
Battery environmental test chamber can build different temperature, humidity, wet heat and other experimental environment, for different kinds of batteries (button battery, electric vehicle battery, mobile phone battery and different kinds of battery (button battery, electric vehicle battery, mobile phone battery and single cell, module module) reliability test.
▊ Application industries: battery, new energy power, electrochemical energy storage industries etc.
▊ Product functions
1.Double-layer vacuum tempered glass observation window, easy to observe the experimental reaction changes
2.Double 85 temperature and humidity control ability
3.Non-linear heating and linear heating (optional)
4.Temperature and humidity cycle test can be programmed, can be divided into multi-stage control
5.Programmable touch screen control system
6.Good insulation effect, effective energy saving
7.Program run/fixed value run, free to choose
8.PID automatic calculation +SSR/SCR positive and inverse two-way synchronous output control
9.With stable, balanced heating, humidification function, can achieve high precision, high stability of temperature and humidity control
10.Equipped with automatic humidification and water supply system, low water consumption, stable circulation
11.Provide multi-directional protection

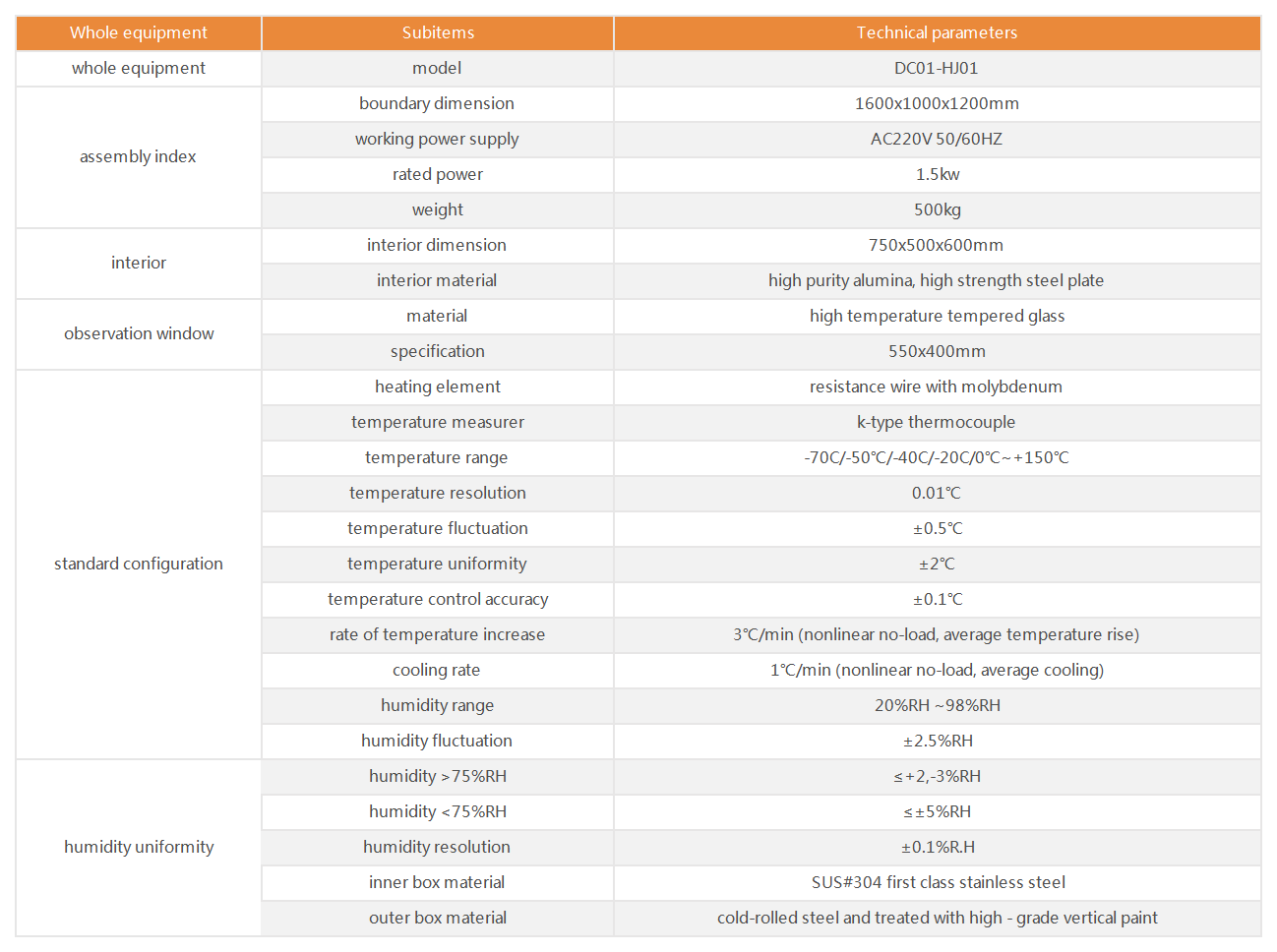

▊ Product Parameters
