Device model：DC01-CJ01
Volume (approx.)：700x800x1650mm(L x W x H, without controller)
Weight (approx.)：250kg
Power supply：700W
▊ Product introduction
The battery falling ball impact tester is suitable for testing the impact resistance of the battery under different experimental conditions (different height, weight, force area). According to the regulations of the test, the battery should not fire, do not explode.
▊ Typical application
Battery falling ball impact tester is suitable for a test pool to withstand the energy required to crack under the impact of the falling ball, to determine the impact resistance of the battery and determine the condition of the battery after damage.
▊ Application industries: Battery falling ball impact tester is suitable for a test pool to withstand the energy required to crack under the impact of the falling ball, to determine the impact resistance of the battery and determine the condition of the battery after damage.
▊ Product functions
The test sample battery should be placed on a flat surface with a rod with a diameter of 15.8±0.2mm crossed over the center of the sample. A 9.1kg or 10kg weight is dropped from a certain height (610mm or 1000mm) onto the sample. When a cylindrical or square battery is subjected to impact test, its vertical axis should be parallel to the plane and perpendicular to the vertical axis of the steel column. The longest axis of the square battery is perpendicular to the steel column, the surface is perpendicular to the impact direction, and each battery is only subjected to one impact test.

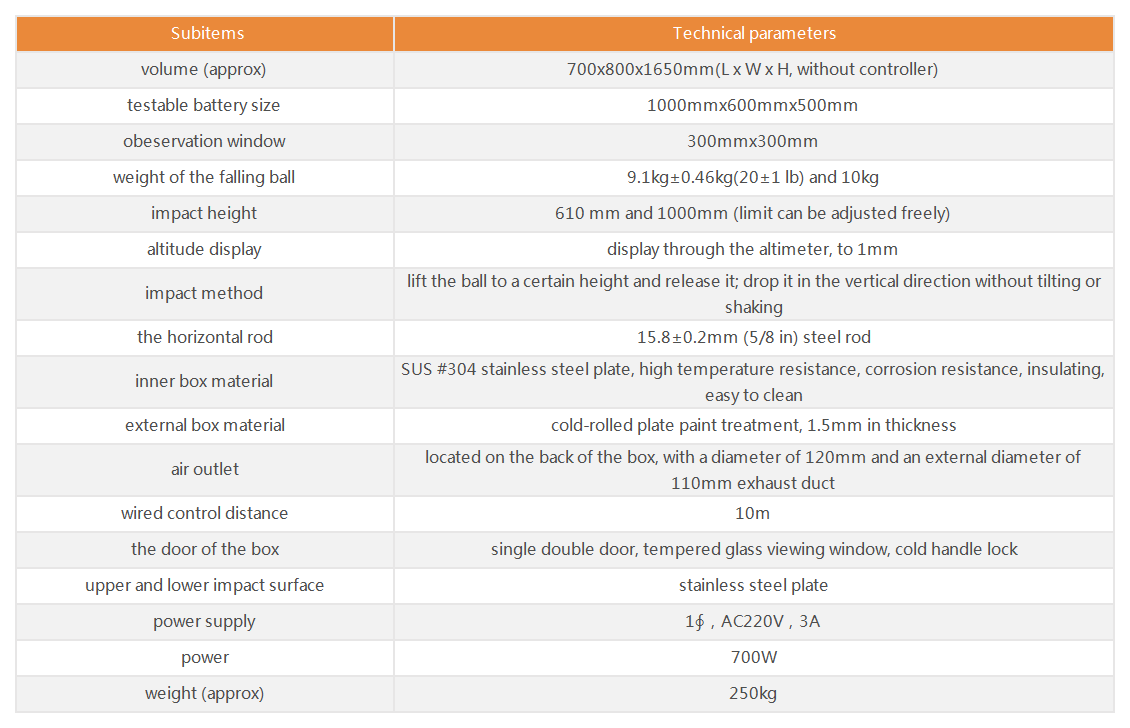

▊ Product Parameters
