Battery drop tester
现在的位置:首页>产品中心

Battery drop tester

Battery drop tester

Battery drop tester

Product model:DC01-DL01

Battery drop tester

产品详情


  Product introduction

The battery drop tester is suitable for testing the damage of the sample in the fall test, as well as evaluating the impact strength of the sample during transportation and handling. The device adopts double column guidance and photoelectric control, the drop height and drop times can be set freely, and the edge, surface and angle drop can be realized.The performance of the device is stable.

▊  Typical application

The battery drop tester is suitable for mobile devices (mobile phone lithium battery, walkie-talkie, electronic dictionary, apartment intercom phone, CD/MD/MP3, etc.) small consumer electronic products and parts free fall test.

▊  Application industries

Battery, new energy power, electrical equipment  industries, etc

▊  Description of design

1) Power source: drive ball screw drive by motor

2) Control mode: PLC touch control, manual input control height and height unit, etc

3) Smoke exhaust function: the smoke exhaust generated by the test can be discharged to the outside through the pipe through the top blower

4) Lighting function: The outside of the door is equipped with LED lights, which are energy-saving and bright, convenient for observation

▊  Safety protection system

1) With no fuse protection switch

2) Test chamber: limit overtemperature, fan, motor overheat relay protection

3) Power supply: leakage protection, overload and short circuit protection

4) The device is equipped with temperature and humidity beyond zero point thyristor power controller to protect the working environment of the device

▊  Working environment

1) Ambient temperature: 0~35℃

2) Ambient humidity: 20%RH~90%RH, non-condensing

3) Equipment noise: ≤50db when measured at 1 meter from the machine and 1.2 meters from the ground in front of the machine

4)Site requirements: ground level, well-ventilated, free of flammable, explosive, corrosive gases and dust; there are no sources of strong electromagnetic radiation nearby

5) Ground bearing capacity: not less than 200kg/m2; leave proper maintenance space around the device

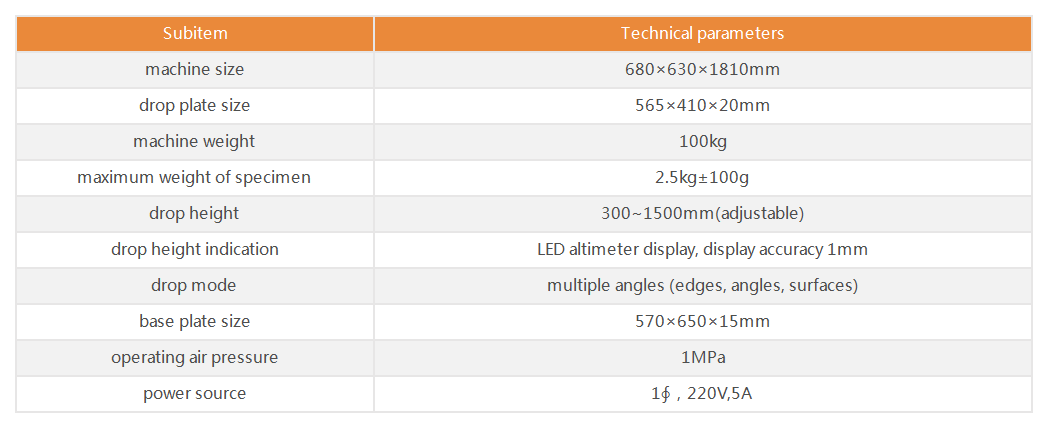

▊  Technical parameters
