Model：DC01-CD01
▊ Product introduction
Instrument for battery charging and discharging aging test is suitable for lithium battery pack cycle charging, discharge, battery pack function test and charge and discharge data monitoring integrated charging and discharge cycle test system, which can test battery charging protection voltage, discharge protection voltage, capacity, etc. The device has four test steps of charging, discharging, shelving and cycling. By editing the corresponding work steps, the battery can be tested according to the set process.
▊ Typical application
The device is suitable for various scientific research units and battery manufacturers to test the battery charging and discharging time, the charging speed test of different voltages and currents, and the
battery aging degree test after multiple charges.
▊ Application industries
Battery, new energy power, electrochemical energy storage and other industries
▊ Functional characteristics
1) Charge and discharge function: the device has constant current and constant voltage charging function, constant discharge function, which can charge and discharge the battery and record the battery capacity
2) Charge and discharge interface: fully meet the requirements of the same charge and discharge port and charge and discharge port of the battery pack, that is, 2 wires (P+P-), 3 wires (P+P-C-) and positive plate charge protection, negative plate discharge protection of power tool battery (CH+P+P-)
3) Check voltage protection: by charging and discharging the battery, detect whether the battery charge protection and discharge protection system works
4) Safety protection: anti-reverse connection protection function, power failure data protection, continuous test, voltage upper and lower limit setting protection, safe discharge current protection
5) Online mode: within a single instrument or 5 instruments, PC can be connected through the serial port; More than 5 use network connection mode, PC computer provides a network port, control less than 30 instruments
6) Control system: The software system adopts the classic and mature C/S mode, and there are two communication modes: serial port and network. Serial port can realize the accurate communication of several instruments in short distance, and network can realize the accurate communication of multiple instruments in long distance
7) Management software: Based on the Windows operating interface, SQL database is used to store test data, which is greatly convenient for staff to query data online and export data. According to the battery barcode code, time, device number, you can view the aging curve of charge and discharge, and you can export the curve

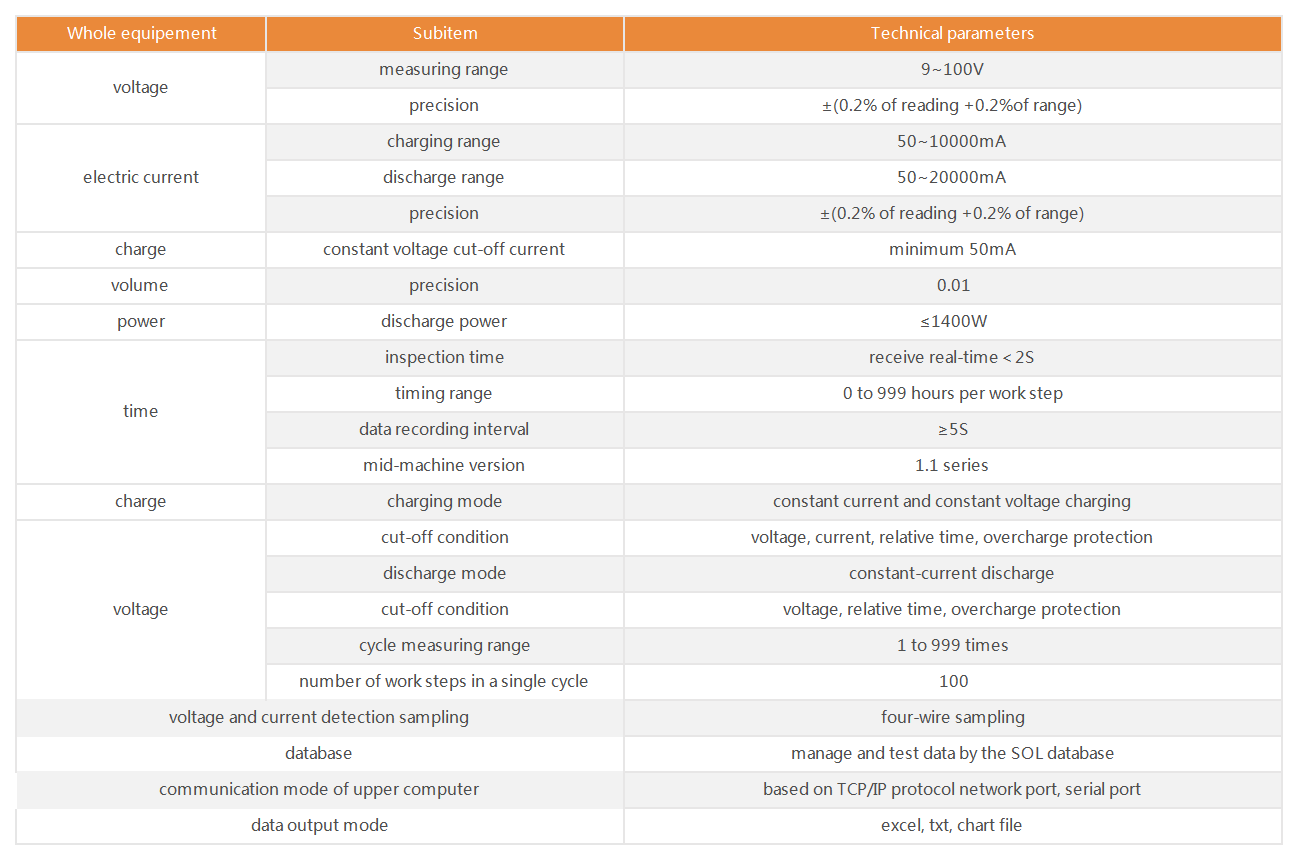

▊ Technical parameters
