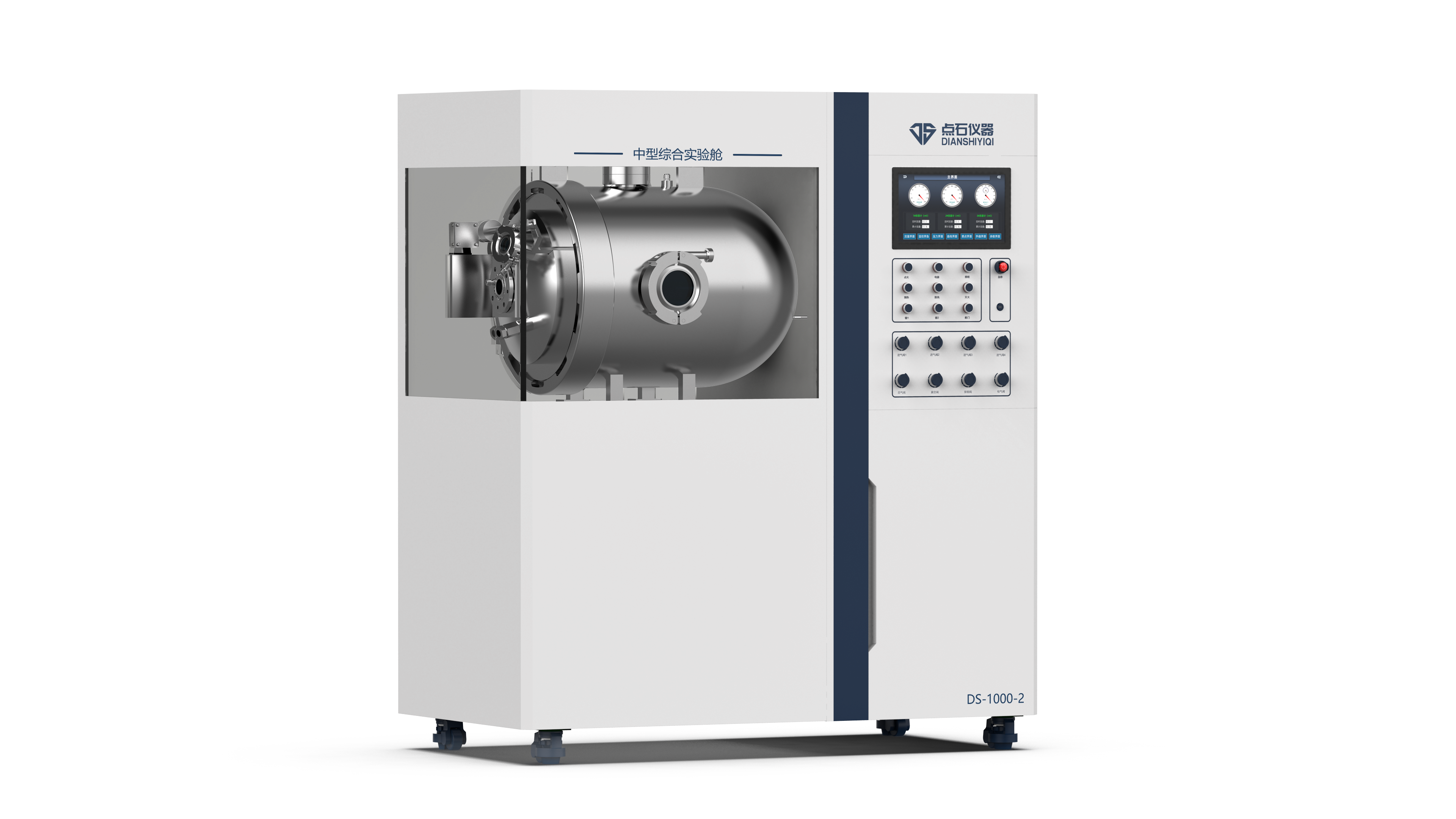

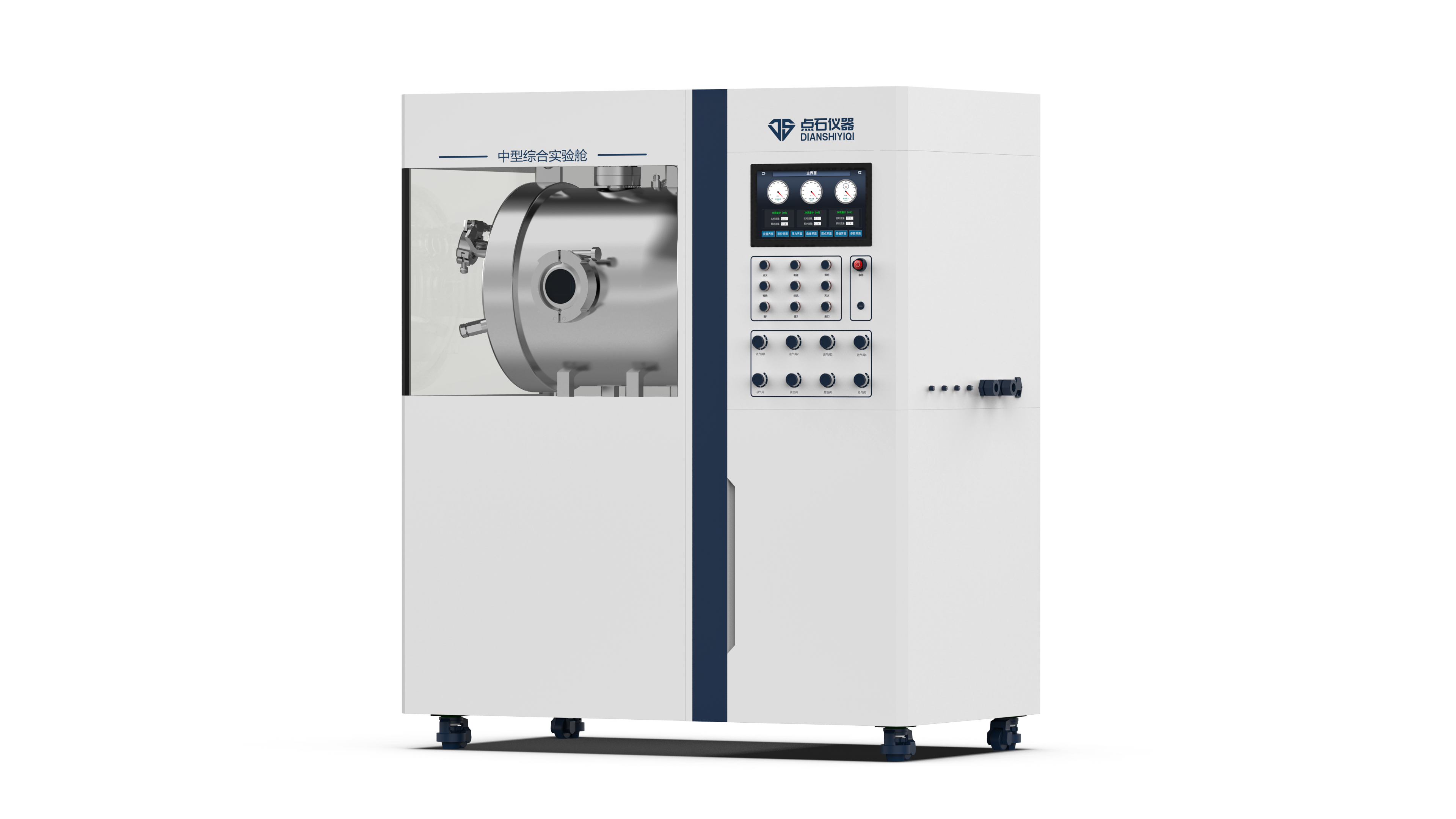

Model：DS-1000-2
Overall dimension：1800mm×1100mm×2000mm
Capacity：82L
▊ Product introduction
The medium-sized comprehensive laboratory module can realize the coupling of a variety
of environmental factors (temperature, pressure, atmosphere, etc.), and carry out a variety
of tests on the battery (acupuncture, extrusion, overcharge, overdischarge, short circuit,
temperature cycle, ignition, fire extinguishing), which is used for the comprehensive
performance test of battery cells and small battery modules.
▊ Experimental Project
1) Thermal runaway experiments of batteries with different air pressures
2) Thermal runaway experiments of different types of batteries
3) Thermal runaway experiments of batteries at different temperatures
4) Battery thermal runaway fire extinguishing performance experiment
5) Charge and discharge experiments of batteries with different air pressures
6) Battery charge and discharge experiments at different temperatures
7) Temperature cycling experiment
8) Low-temperature performance
9) High-temperature performance
▊ Measurable Data
1)Thermal runaway temperature
2) Gas production volume analysis
3) Gas production component ratio
4) Temperature field
5) Gas production rate
6) Fire extinguishing time
7) Charging voltage
8) Discharge voltage
9) Charging current
10) Discharge current
11) Charging time
12) Discharge time
13) Whether there is a fire
14) Whether it explodes or not
15) Whether there is any leakage
16) Whether it is deformed
17) Capacitance
▊ Optional Instruments
High-speed cameras, infrared video cameras, particle image velocimetry (PIV), planar laser induction analyzers (PLIF), mass spectrometer
▊ Functional characteristics
●High temperature environment:
Overall maximum ambient temperature: 100℃, heating rate 1℃/min
Maximum temperature of local table: 600℃
Maximum temperature rise rate: 10℃/min
According to standards: GB/T 2423.2-2008, IEC60068
●Low temperature environment:
Minimum temperature: -50℃, cooling rate 1℃/min
According to standards: GB/T 2423.1-2008, GB/T 38031-2020
●High altitude environment:
Minimum air pressure: 1kPa (A) (approximately 31200m above sea level)
Vacuum time: ≤9min
According to standard: GB/T 31467.3-2015
●Acupuncture extrusion:
Maximum extrusion pressure: 20kN, maximum stroke: 100mm
●Product analysis:
Online analysis of O2, CO, CO2, SO2, NH3, CH4, C2H4, H2, etc

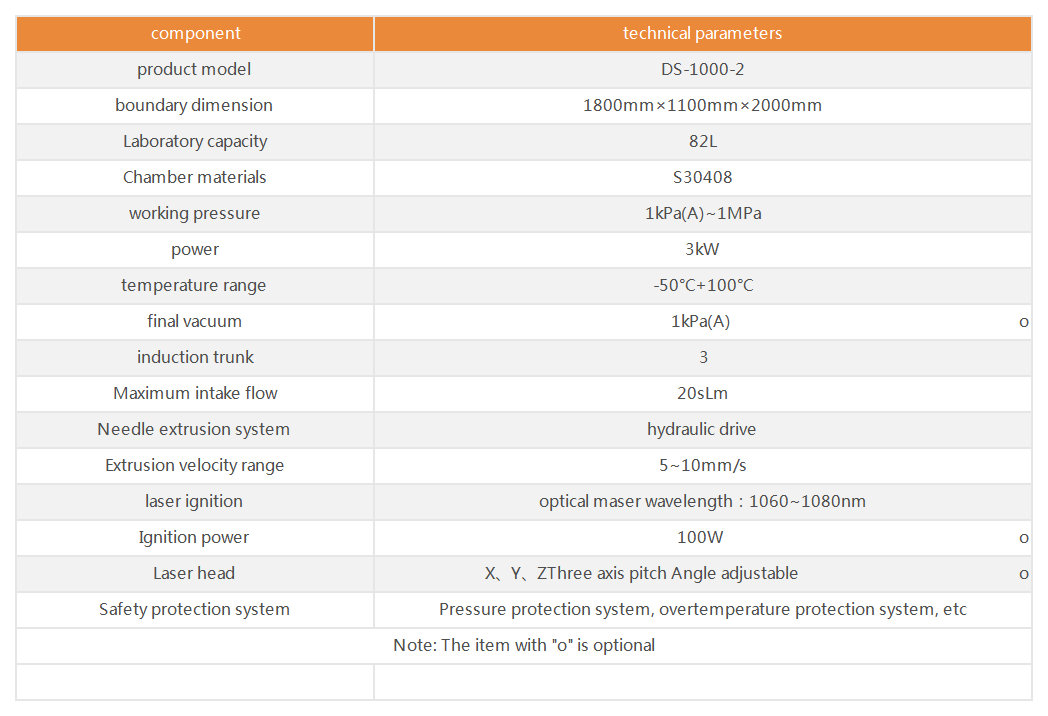

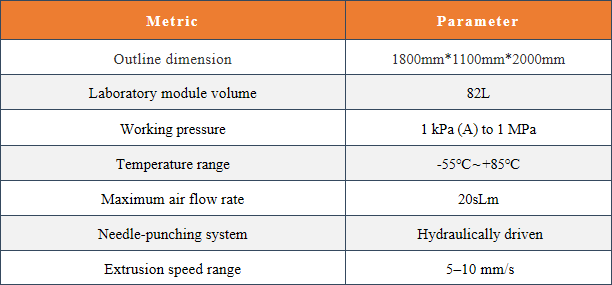

▊ Technical parameters
