Model：DS-9100-408
Outer box size：1600mm×1050mm×1850mm
Lnner box size：600mm×800mm×850mm
Volume：408L
▊ Product introduction
High and low temperature test chamber can build high temperature, low temperature, humidity and other experimental environment, support high and low temperature routine test, cold resistance test, high and low temperature alternating test, low temperature storage test, etc., for materials, electrical, electronic products, electronic components, instruments, aerospace samples in high and low temperature environment performance research.
▊ Typical application
1) High and low temperature routine test
2) Cold resistance test
3) High and low temperature alternating test
4) Low temperature storage test
▊ Application fields：Aerospace, national defense military industry,
automotive machinery, information and communication, energy materials, etc
▊ Functional characteristics
●High temperature environment:
Maximum temperature: 150℃, heating rate: 3℃/min
According to standards: GB/T 10592-2008, GB/T 2423.2-2008, GJB 150.3-86
●Low temperature environment:
Minimum ambient temperature: -70℃, cooling rate: 1℃/min
Cooling method: air cooling or water cooling
Refrigerant: non-fluorine environmental protection R404A/R23
According to standards: GB/T 2423.1-2008, GJB/T 150.4-86
●Humidity environment:
Humidity range: 20%R.H~98%R.H
Humidity fluctuation: ±2.5%R.H
Humidity deviation: ±3%R.H (humidity > 75%R.H), ±5%RH (humidity ≤75%R.H)
According to standard: GB/T 10592-2008

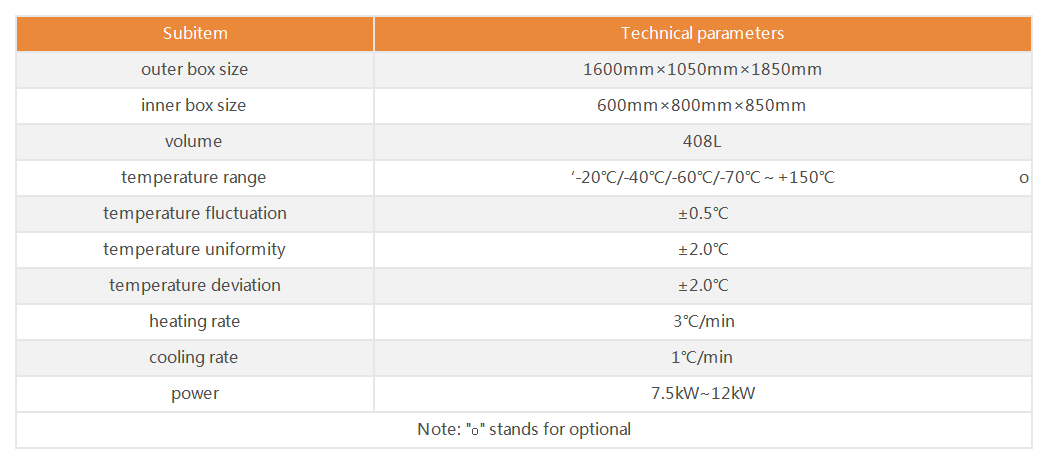

▊ Technical parameters
