Model：DS-9200-408
Outer box size：1350mm×1050mm×1850mm
Lnner box size：800mm×600mm×850mm
Volume：408L
▊ Product introduction
High and low temperature alternating humidity and heat test chamber can build high and low temperature or humidity and heat environment, support high temperature, low temperature, alternating humidity and heat or constant test, used to test materials, electrical, electronic products, electronic components, instruments, aerospace samples and other parameters and performance under different environmental conditions.
▊ Typical application
1) High and low temperature routine test
2) Cold resistance test
3) High and low temperature alternating test
4) Low temperature storage test
▊ Functional characteristics
●High temperature environment:
Maximum temperature: 150℃, heating rate: ≥2.5°C/min
According to standard: GB2423.2-2008 high temperature test method
●Low temperature environment:
Minimum ambient temperature: -70℃, cooling rate: 1℃/min
Condensing method: air cooling or water cooling
Refrigerant: R404A (environmental protection) /R23
According to standard: GB2423.1-2008
●Humidity environment:
Humidity range: 20%R.H~98%R.H
Humidity fluctuation: ±3%R.H
Humidity fluctuation: ±1%R.H
According to standard: GB2423.3-2006

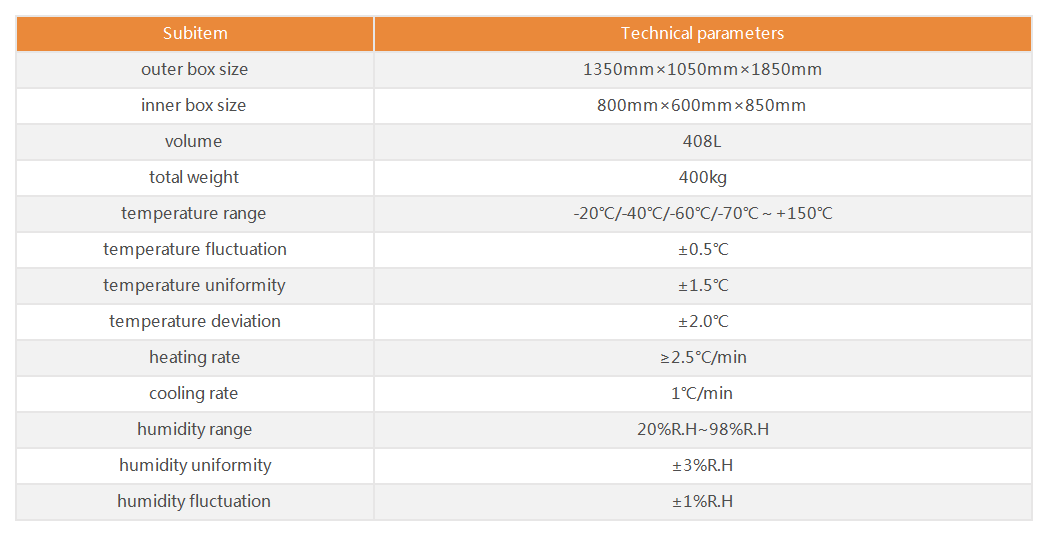

▊ Technical parameters
