Diffusion flame burner is a flat flame burner, which can generate a uniform diffusion flame close to and parallel to the burner plane. The device is used to study the combustion characteristics of different fuels.

product model:DS-4000-3

external diameter of the fuel pipe :0.8mm

inner diameter of the fuel pipe :0.54mm

quantity of the fuel pipe :212 pipes

Diffusion flame burner

Diffusion flame burner

Diffusion flame burner

产品详情


  Product introduction

Diffusion flame burner is a flat flame burner, which can generate a uniform diffusion flame close to and parallel to the burner plane. The device is used to study the combustion characteristics of different fuels.

▊  Functional characteristics

Non-premix:

The oxidizer and fuel are transported to the combustion zone through different pipelines for diffusion combustion

Flame size: 1in

Central tube:

Through the medium: gas, liquid, solid particles

Inner diameter: 2.6mm (customizable)

Protective gas ring:

The protection gas flows smoothly and evenly. The size of the protection gas is 41mm×41mm

Flame: The flame has the advantages of stability, non-premix, laminar flow, near-adiabatic, etc

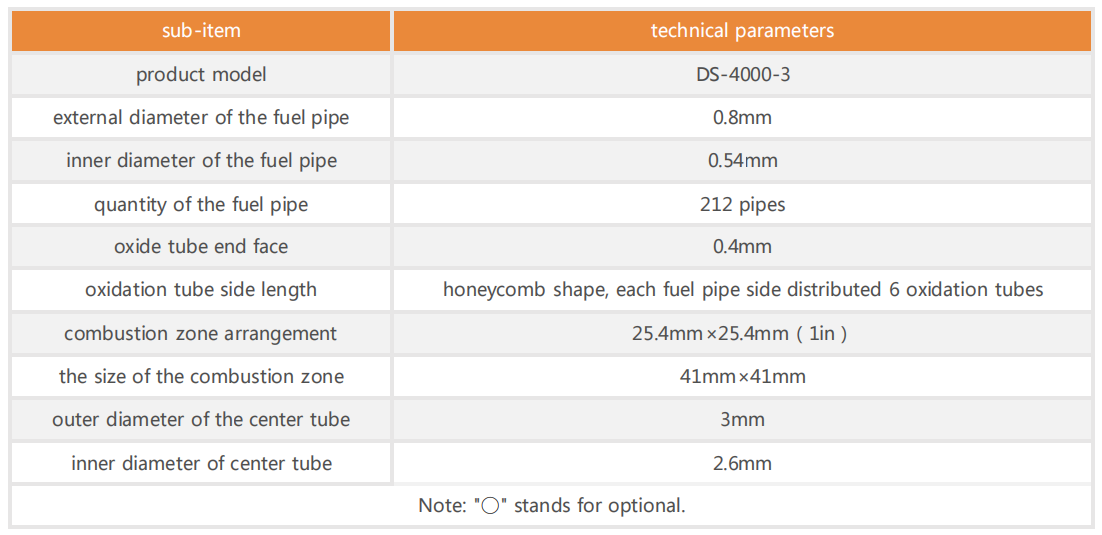

▊  Technical parameters
