Product model:DS-2000-5

Explosive limit detector

Explosive limit detector

Explosive limit detector

产品详情


  Product introduction

Explosion limit tester is a professional test instrument for explosive risk assessment of combustible gas, liquid vapor and dust, which can be used to study the explosion limit, maximum explosion pressure and maximum pressure rise rate of combustible mixture, real-time monitoring and observation of the experimental process, and support data collection and product analysis.

▊  Functional characteristics

High-pressure environment:

Maximum working pressure: 6MPa

Vacuum environment:

Limit vacuum: 10Pa(A), vacuum time: ≤5min (1KPa)

Dusting system:

Dust diffusion storage capacity: 0.6L;

Maximum pressure: 4MPa

Tightness test:

Test pressure range: -90kPa~350kPa

Resolution: 0.1Pa

High speed camera:

Ultra-high shooting rate ≥2000fps, ultra-high sensitivity

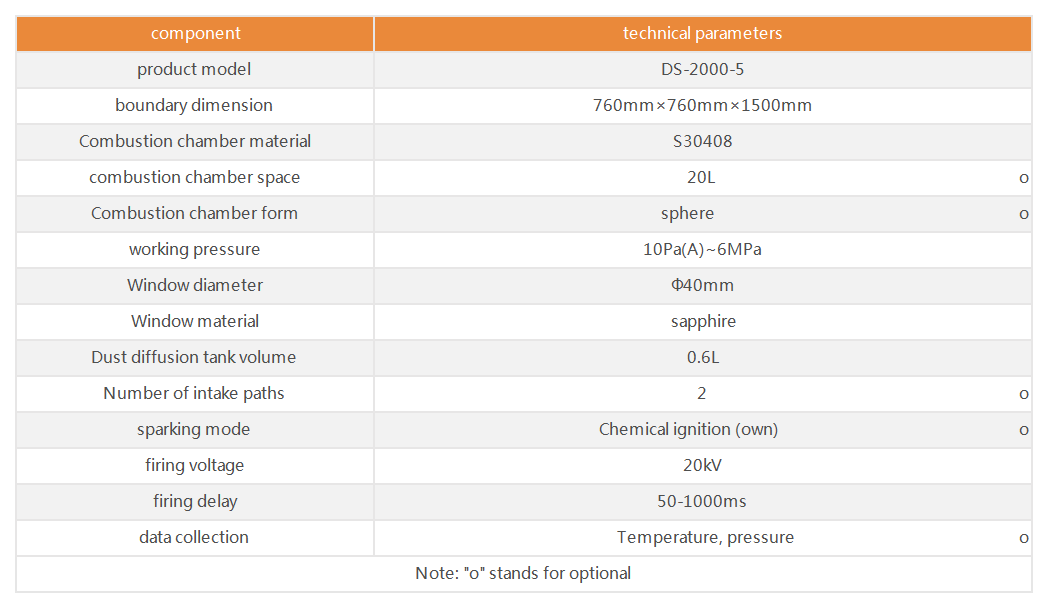

▊  Technical parameters
