Product model：DS-2000-3
▊ Product introduction
Turbulent type constant volume projectile can create turbulent environment, which can be used to study premixed flame combustion, oil spray combustion and other experiments, real-time monitoring and observation of experimental process, support data collection and product analysis.
▊ Functional characteristics
●High-pressure environment:
Maximum working pressure: 10MPa
●Vacuum environment:
Limit vacuum: 10Pa(A), vacuum time: ≤5min (1KPa)
●Hot wire velocimeter:
Maximum frequency response: 450kHz
●Turbulence accuracy: ≤0.3%
●Schlieren system:
Main mirror: K9 optical glass; Stress: ≤2;
Machining surface accuracy: < 1/10Λ;
Reflection coefficient: ≥90;
Surface accuracy: < 1/10 wavelength
●Product analysis:
Online analysis of O2, CO, CO2, SO2, NH3, CH4, C2H4, H2 and other components；
According to standards: ASTM E918, ASTM E2079, EN1839, EN15967, UL9540A

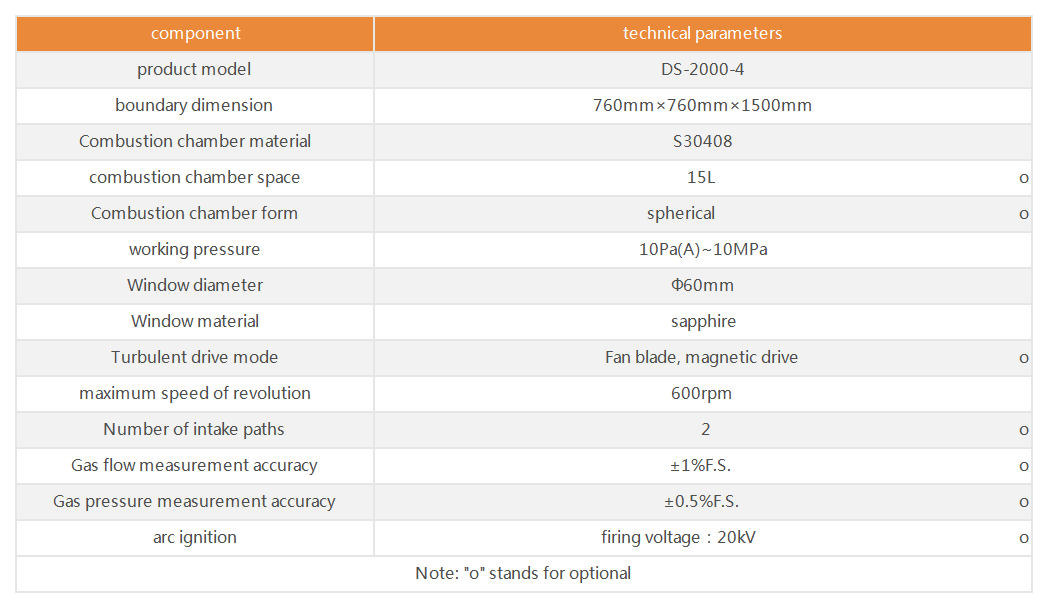

▊ Technical parameters
