Product model：DS-3000-3
boundary dimension：760mm×760mm×1800mm
combustion chamber space：15L
▊ Product introduction
The maximum heating temperature of the high temperature constant volume bomb can reach 600℃, which is used for the study of fuel combustion characteristics under high temperature conditions and compound environment, real-time monitoring and observation of the experimental process, supporting data collection and product analysis, and for the study of laminar flow combustion, one-time combustion and continuous combustion.
▊ Functional characteristics
●High-pressure environment:Maximum working pressure: 6MPa
●Vacuum environment:Limit vacuum: 10Pa(A), vacuum time: ≤5min (1KPa)
●Ambient temperature:Maximum temperature: 600℃, maximum temperature
rise rate: 15℃/min (non-linear)
●Fuel injection system:Maximum injection pressure: 180MPa
●Fuel injection system:Maximum injection pressure: 180MPa
●Schlieren system:Main mirror: K9 optical glass; Stress: ≤2; Machining surface
accuracy: < 1/10Λ; Reflection coefficient: ≥90; Surface accuracy: < 1/10 wavelength

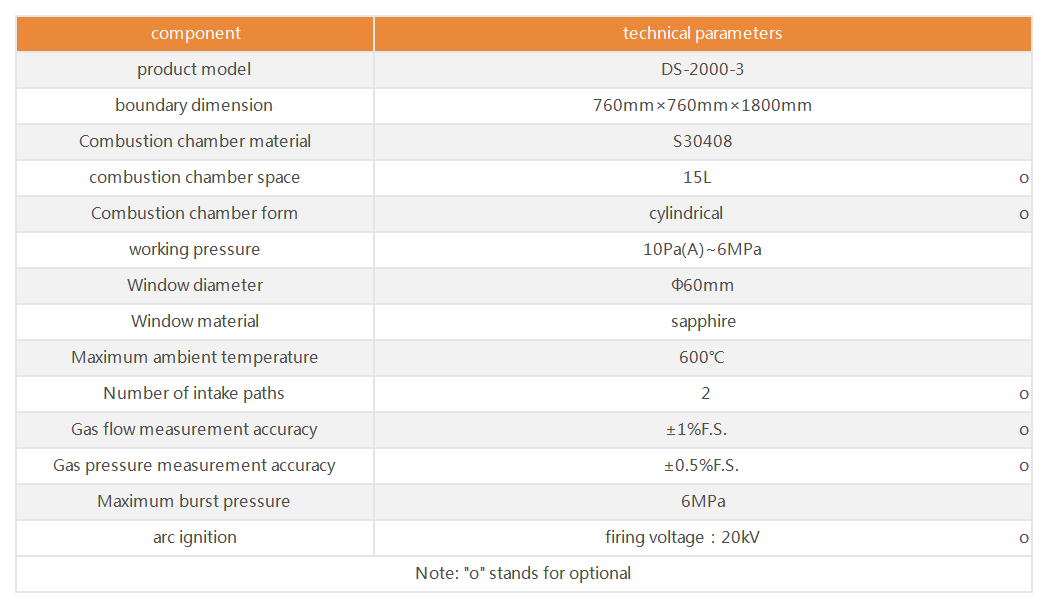

▊ Technical parameters
