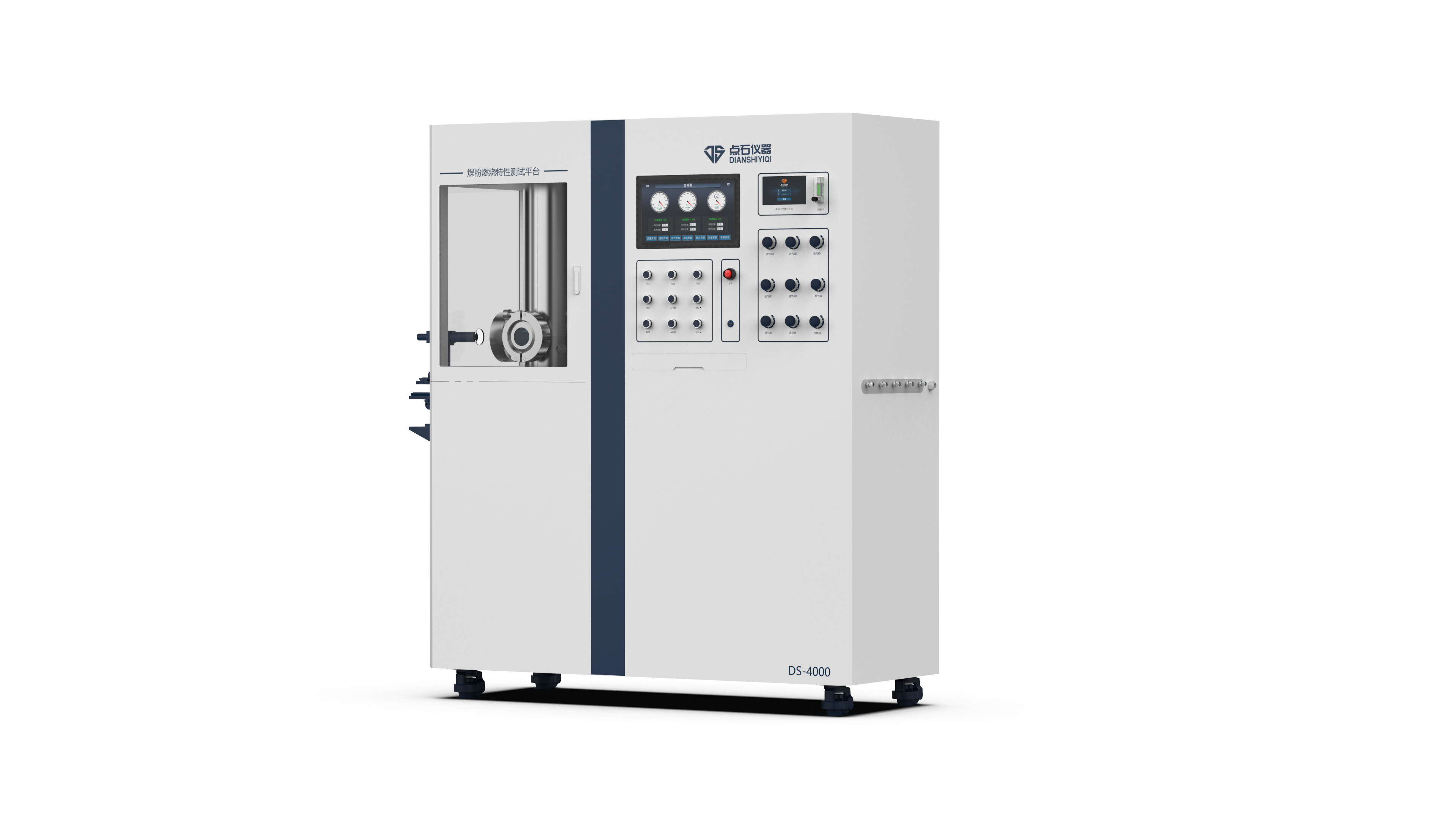

Product model：DS-4000
Ovwerll dimension：1700mm×800mm×2000mm
Combustion chamber volume：Ф140mm×1200mm
▊ Product introduction
The coal fines combustion characteristic test system is a combustion diagnosis device, which can build a composite reaction environment (such as methane, carbon monoxide, hydrogen, air), with the functions of blowing powder combustion simulation, real-time observation, product analysis, fire suppression, etc., which is suitable for small-scale flame combustion test of different components.
▊ Functional characteristics
●High-pressure environment：
Maximum working pressure: 1MPa
●Fire extinguishing system：
Maximum single injection: 50mL；
Maximum injection pressure: 2MPa；
Maximum injectionflow: 200mL/min
●Schlieren system：
Stress：≤2；Machining surface accuracy： < 1/10Λ；Reflection coefficient: ≥90
●Product analysis：
On-line analysis of O2, CO, CO2, SO2, CH4, C2H4, H2 and other components
●According to standards:
ASTM E918, ASTME2079, EN1839, EN15967, UL9540A

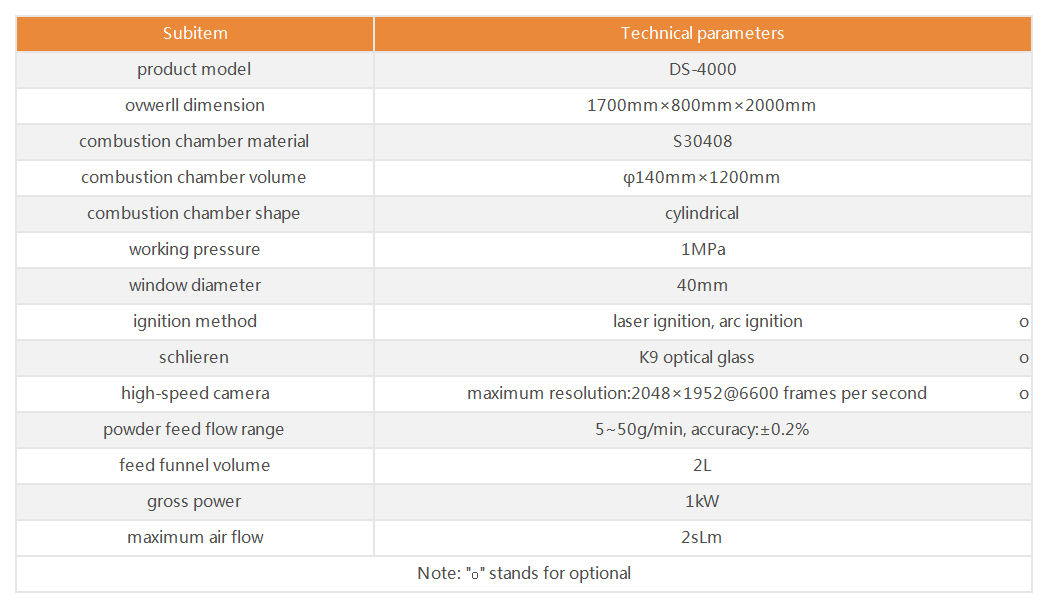

▊ Technical parameters
