Product model：DS-3000
▊ Product introduction

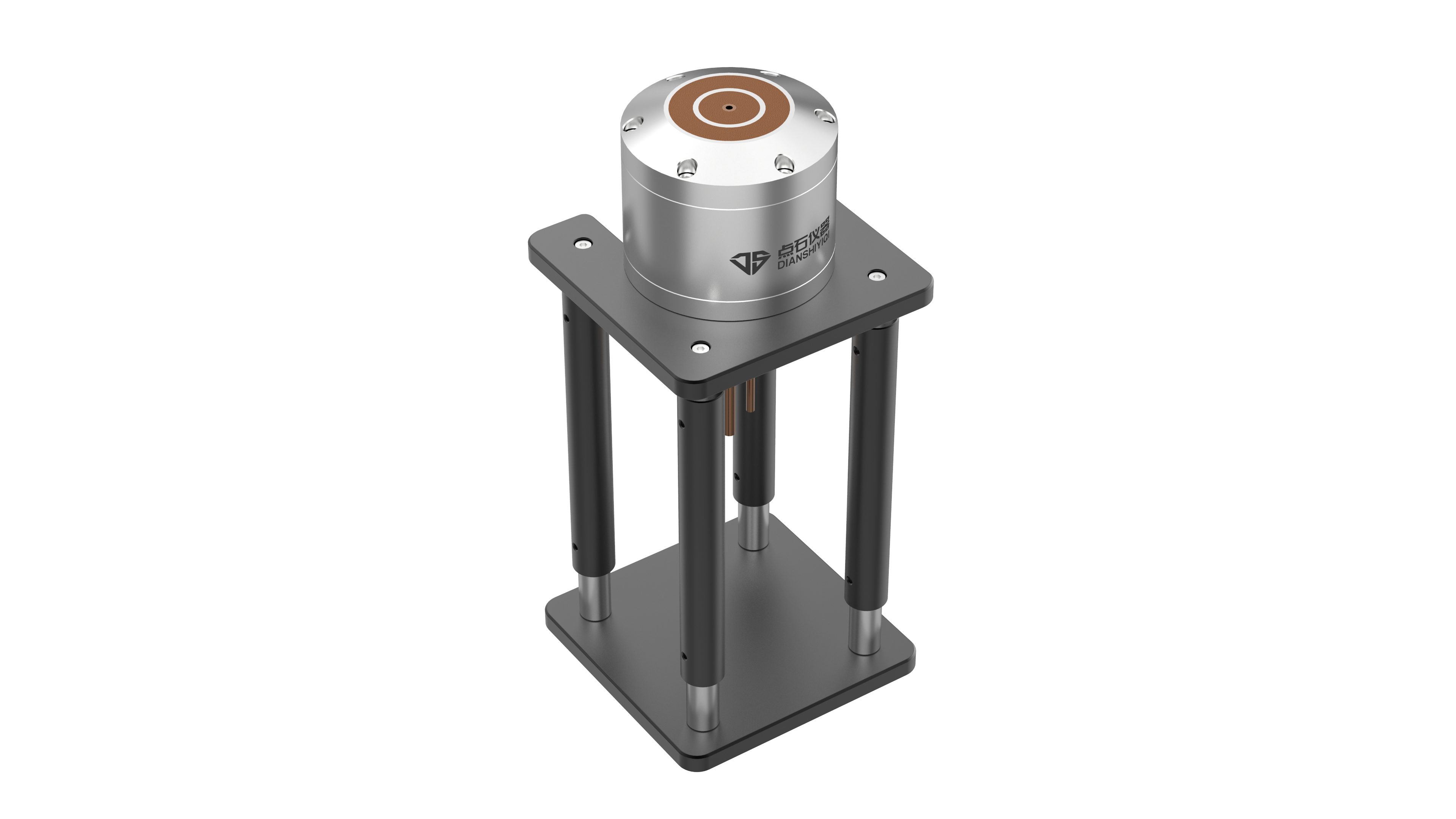

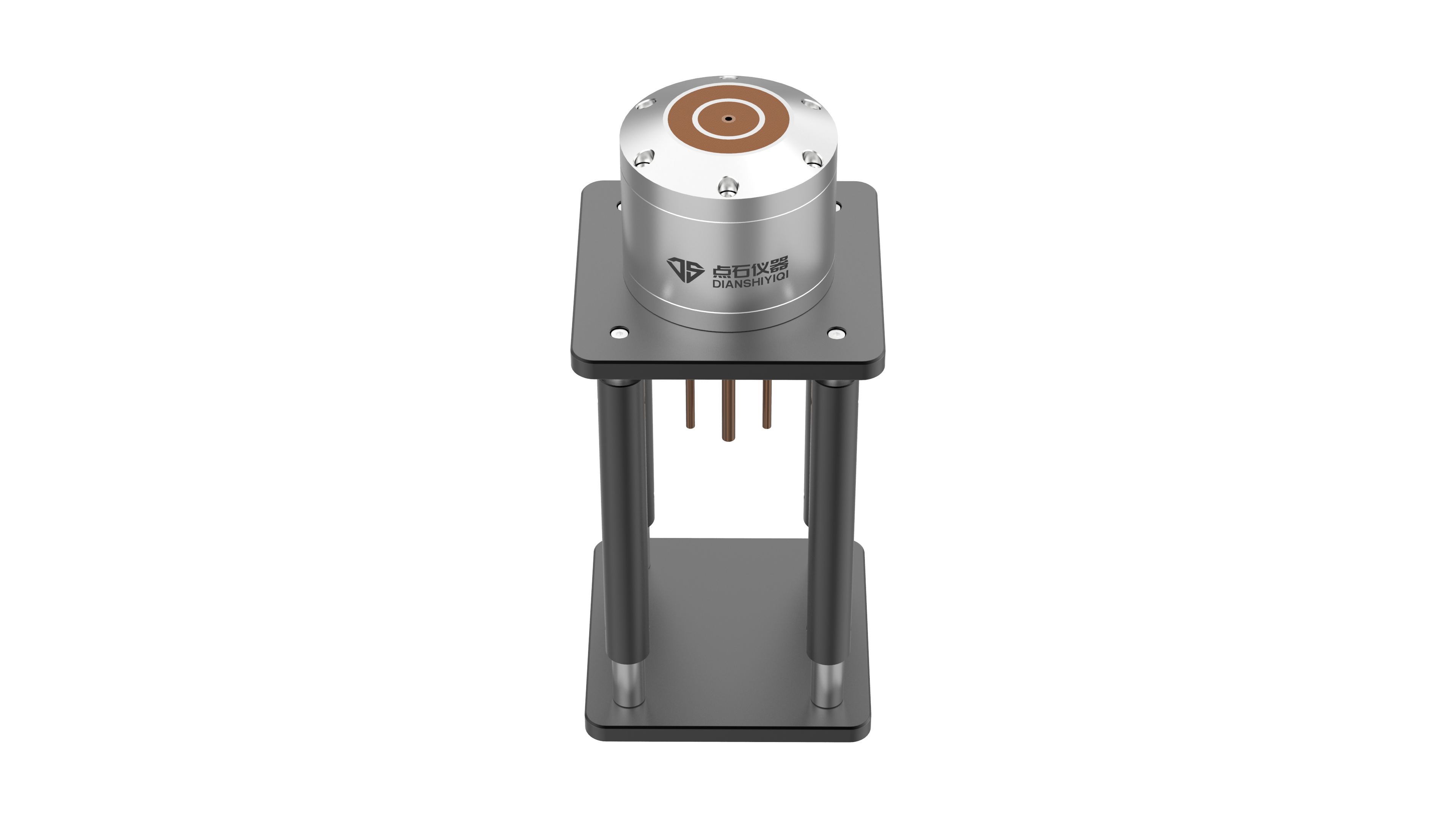

The flat flame burner can generate one-dimensional gas combustion flame with uniform
temperature in the width direction, support fuel mixture combustion, and is suitable for
mass combustion analysis (solid single particle combustion characteristics research, solid
powder jet combustion characteristics research).
▊ Experimental project
1) The distribution and accumulation of carbon particles in the flame
2) Liquid spray combustion characteristics
3) Combustion characteristics of solid powder
4) Experiment on the influence of Syngas components and Reynolds number on flame structure
5) Research on the Influence of Premixed Laminar Flow Flame Combustion Characteristics
▊ Measurable data
1) Combustion temperature field
2) Flame form
3) Flame burning video and images (in conjunction with high-speed cameras)
4) Flame propagation rate (in conjunction with high-speed cameras)
5) The quantity and concentration of soot
6) Maximum flame temperature
7) Average temperature
8) Maximum heat release rate
9) Flame thickness
10) Thickness of the reaction zone
11) Combustion efficiency
▊ Functional characteristics
●Fuel premixing：
Oxidant and fuel can be proportioned and then introduced into the sintered burnerplate
●Maximum passing traffic： 3sLm
●Cooling tray：
Medium：water, maximum flow rate：10L/min
●Central tube：
Through the medium：gas, liquid, solid particles；Pipe diameter: 3/5/7/9mm
●Protective gas ring：
Smooth flow of protective gas,
●maximum flow： 500sccm

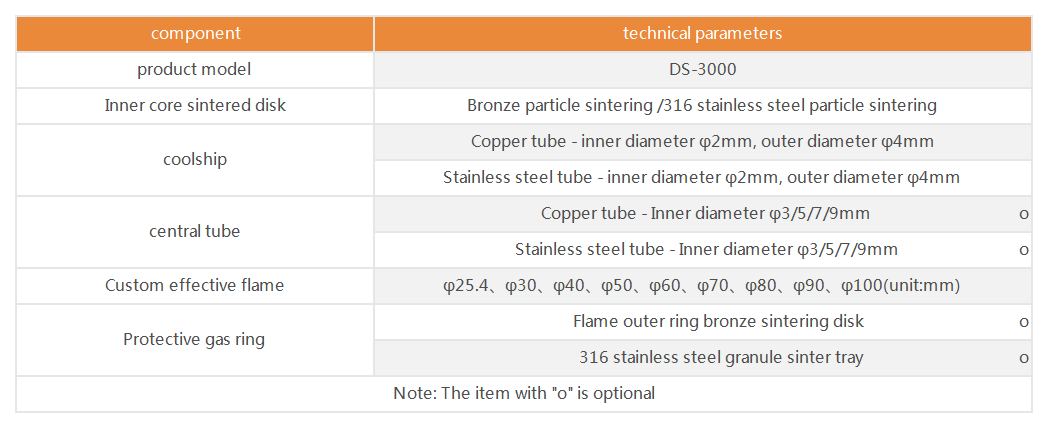

▊ Technical parameters
