▊  Product introduction

The cylindrical constant volume projectile can test the blasting characteristics of materials in composite environment, monitor and observe the experimental process in real time, support data acquisition and product analysis, and be used for laminar flow combustion, one-time combustion and continuous combustion research.

▊  Functional characteristics

●High-pressure environment:

Maximum working pressure: 10MPa

●Vacuum environment:

Limit vacuum: 10Pa(A), vacuum time: ≤5min (1KPa)

●Schlieren system:

Main mirror: K9 optical glass; Stress: ≤2; Machining surface

accuracy: < 1/10Λ; Reflection coefficient: ≥90; Surface accuracy: < 1/10 wavelength

●High speed camera:

Ultra-high shooting rate ≥2000fps, ultra-high sensitivity

●Product analysis:

Online analysis of O2, CO, CO2, SO2, NH3, CH4, C2H4, H2 and other components；

●According to standards: ASTM E918, ASTM E2079, EN1839,EN15967, UL9540A

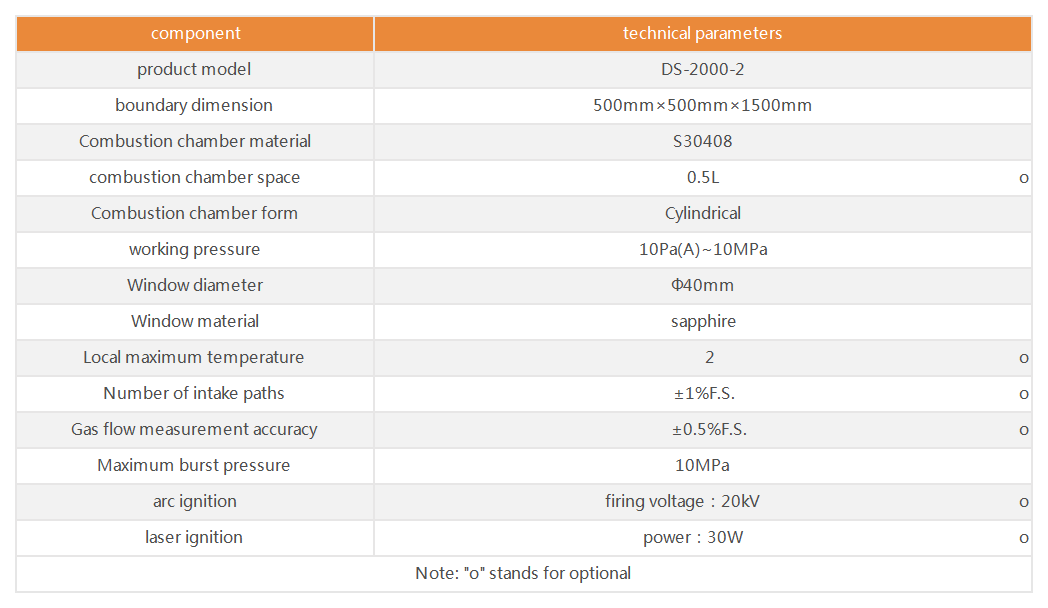

▊  Technical parameters
