Product model：DS-2000-1
Overall dimension：650mm×650mm×1500mm
Combustion chamber volume：15L
▊ Product introduction
The spherical constant volume projectile can test the blasting characteristics of materials in composite environment, monitor and observe the experimental process in real time, support data acquisition and product analysis, and be used for laminar combustion, one-time combustion and continuous combustion research.
▊ Functional characteristics
●High-pressure environment：
Maximum working pressure: 10MPa
●Vacuum environment：
Limit vacuum degree: 10Pa(A), vacuum time: ≤5min
●Schlieren system：
Main mirror optical material: K9 optical glass; Stress: ≤2; Machining surface accuracy: < 1/10Λ; Reflection coefficient: ≥90;
Surface accuracy: < 1/10 wavelength
●Product analysis：
Online analysis of O2, CO, CO2, SO2, NH3, CH4, C2H4,H2 and other components
●According to standards:
ASTM E918, ASTM E2079, EN1839, EN15967,UL9540A

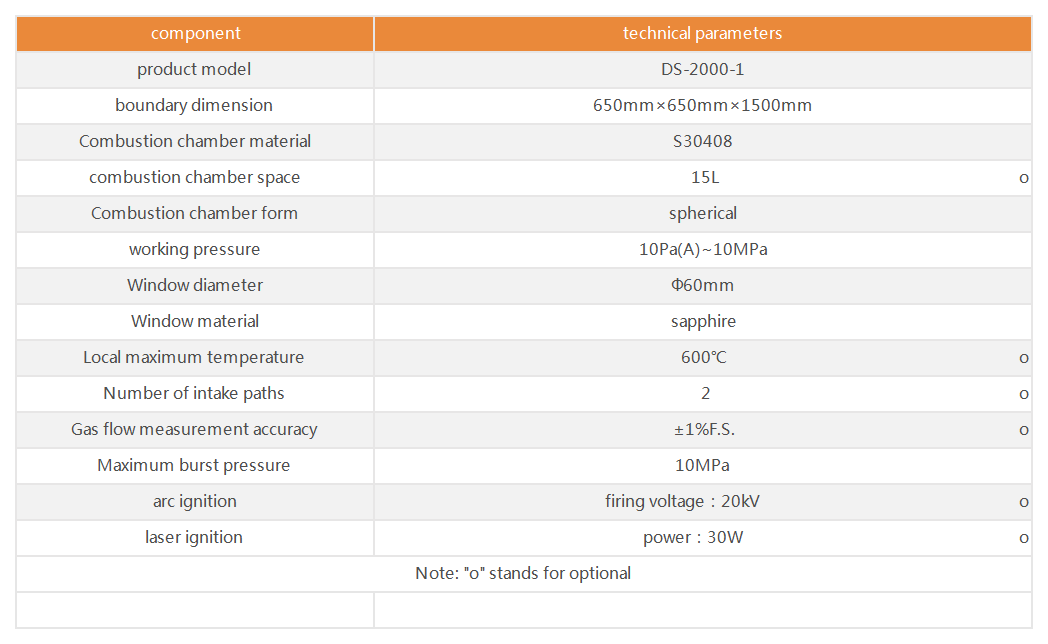

▊ Technical parameters
