▋  Product introduction

The small laboratory room can build a compound experimental environment (high temperature, low temperature, high pressure, low pressure, oxygen rich, oxygen poor), and carry out real-time monitoring and observation of the experimental processRecord and analyze products to obtain key parameters (ignition point, calorific value, mass loss,Product composition) for the study of combustion or pyrolysis characteristics of materials.

▋   Experimental Project

1) Ignition and combustion experiments under different atmospheres (oxygen-rich, oxygen-poor, inert gas and water vapor, etc.)

2) Ignition combustion experiments with different intake air flow rates

3) Ignition and combustion experiment under vacuum environment

4) Ignition combustion experiment of high-energy fuel after preheating

5) Experiment for measuring the calorific value of high-energy fuel combustion

6) Ignition and combustion experiments under different initial temperature conditions

7) Experiments for measuring the ignition point and flame temperature of high-energy fuels

8) Ignition and combustion experiments under high and low pressure environments

9) Combustion test of deflagration pressure when fuel is ignited and burned

▋  Measurable Data

1）Ignition delay time

2) Fuel combustion duration

3) Flame burning video and images (in conjunction with high-speed cameras)

4) Change in pressure in the combustion chamber

5) Combustion flame temperature

6) Ignition temperature of high-energy fuel

7) Flame propagation rate (in conjunction with high-speed cameras)

8) Analysis of gas combustion products

9) Calorific value of combustion

▋  Optional Instruments

Gas product analyzer, reflectance projector, high-speed camera, infrared video camera, particle image velocimetry (PIV), planar laser induced analyzer (PLIF), mass spectrometer

▋  Functional characteristics

●High-pressure environment:

Maximum working pressure: 3MPa

●Vacuum environment:Limit vacuum degree: 10Pa(A), vacuum

time: ≤5min

●High and low temperature:

Temperature range: -50℃~+100℃,rising and cooling rate: 1℃/min

●Sample preheating:

Maximum temperature: 600℃, maxim；um temperature rise rate: 20℃/min

●Window closes:

Pneumatic opening device, convenient operation

●Product analysis:

Online analysis of O2, CO, CO2, SO2, NH3, CH4, C2H4, H2 and other components

●According to standards:

ASTM E918, ASTM E2079, EN1839, EN15967, UL9540A

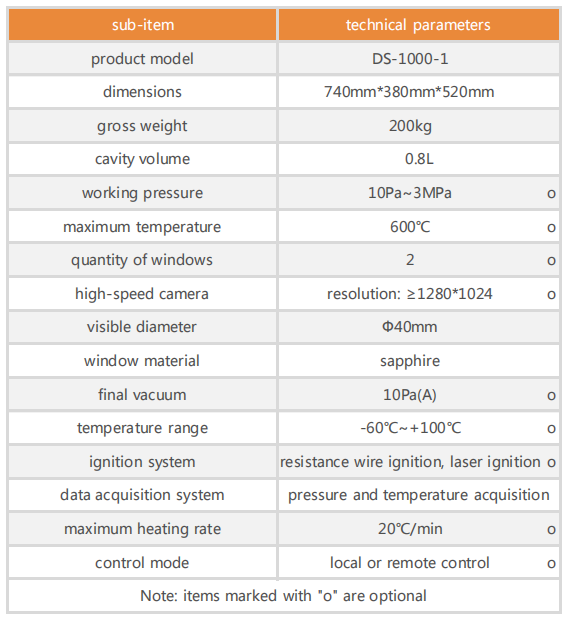

▋  Technical parameters
