Device model:DC01-FB01
Lnner box size:500x500x500mm(W x D x H)
Material:SUS304 stainless steel plate, thickness 1.2mm, coated with Teflon
Observation box:250x250mm two-layer tempered glass, transparent window equipped with stainless steel mesh
▊ Product introduction
Lithium battery overcharge and overdischarge test system is mainly used for battery overcharge and overdischarge, charge and discharge test. The battery is placed in the explosion-proof box with external charge and discharge tester, which can provide multi-directional protection for operators and instruments.
▊ Typical application
Lithium battery overcharge and overdischarge test system is suitable for battery manufacturers and research institutions to test and study single power battery, combined battery, battery pack, lead-acid battery, nickel-hydride/nickel-chromium combined battery.
▊ Application industries: battery, new energy power, electrochemical energy storage industries, etc.
▊ Product functions
Control panel:
easy to operate, equipped with lighting, exhaust key, power switch button; the LED display details the voltage and current changes during charging and discharging
Viewing window:
double-layer toughened glass with steel wire mesh inside can be used for traction during blasting
Explosion-proof lighting:
high brightness explosion-proof LED lighting with waterproof, anti-fog, explosion-proof functions

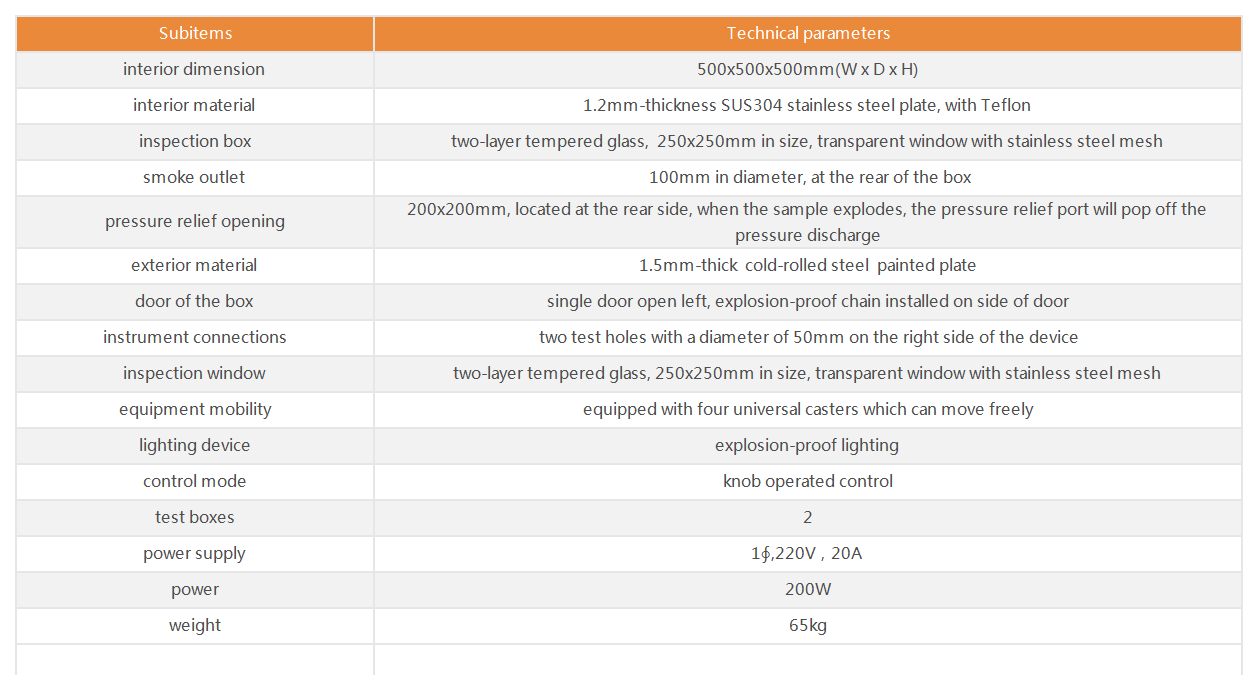

▊ Product Parameters
