▊  Product introduction

Battery heat abuse tester can simulate placing the battery in a high temperature chamber with natural convection or forced ventilation, heating up to the set test temperature at a certain heating rate and maintaining a certain time. The hot air circulation system can keep the operating temperature evenly distributed.

▊  Typical application

Battery heat abuse tester is mainly used in battery safety performance testing furnace heat test, heating test and so on.

▊  Application industries:  battery, new energy power, electrochemical energy storage industries etc.

▊  Product functions

1.The machine adopts PID control system, convenient and intuitive, automatic constant temperature, rapid temperature compensation function

2.Over temperature protection, over load automatic power off system

3.New high temperature long axis motor

4.Circulation system: forced horizontal air supply cycle

5.Heating system:PID+S.S.R.

6.Timing function: when the temperature reaches the set time, power off alarm indication

7.The test area of the test box is an independent test area, and the test area box is made of stainless steel SUS304

8.The bottom is equipped with 4 casters, easy to move and fix

9.Safety explosion-proof door: equipped with 10mm thick double-layer tempered glass

10.The door internal welding reinforcement, firm and durable

11.The outside of the door is equipped with LED lights, energy saving and high brightness, convenient to observe the status of the battery test in the test area

12.Smoke exhaust function: the smoke generated by the test can be discharged to the outside through the top blower through the pipe

13.The external link hinge door lock uses high-strength standard accessories, easy to install and replace

14.The pressure relief device is opened at the back of the equipment, the hole diameter is 100mm, and the dispersed silicone plate is installed inside and outside the pressure relief port

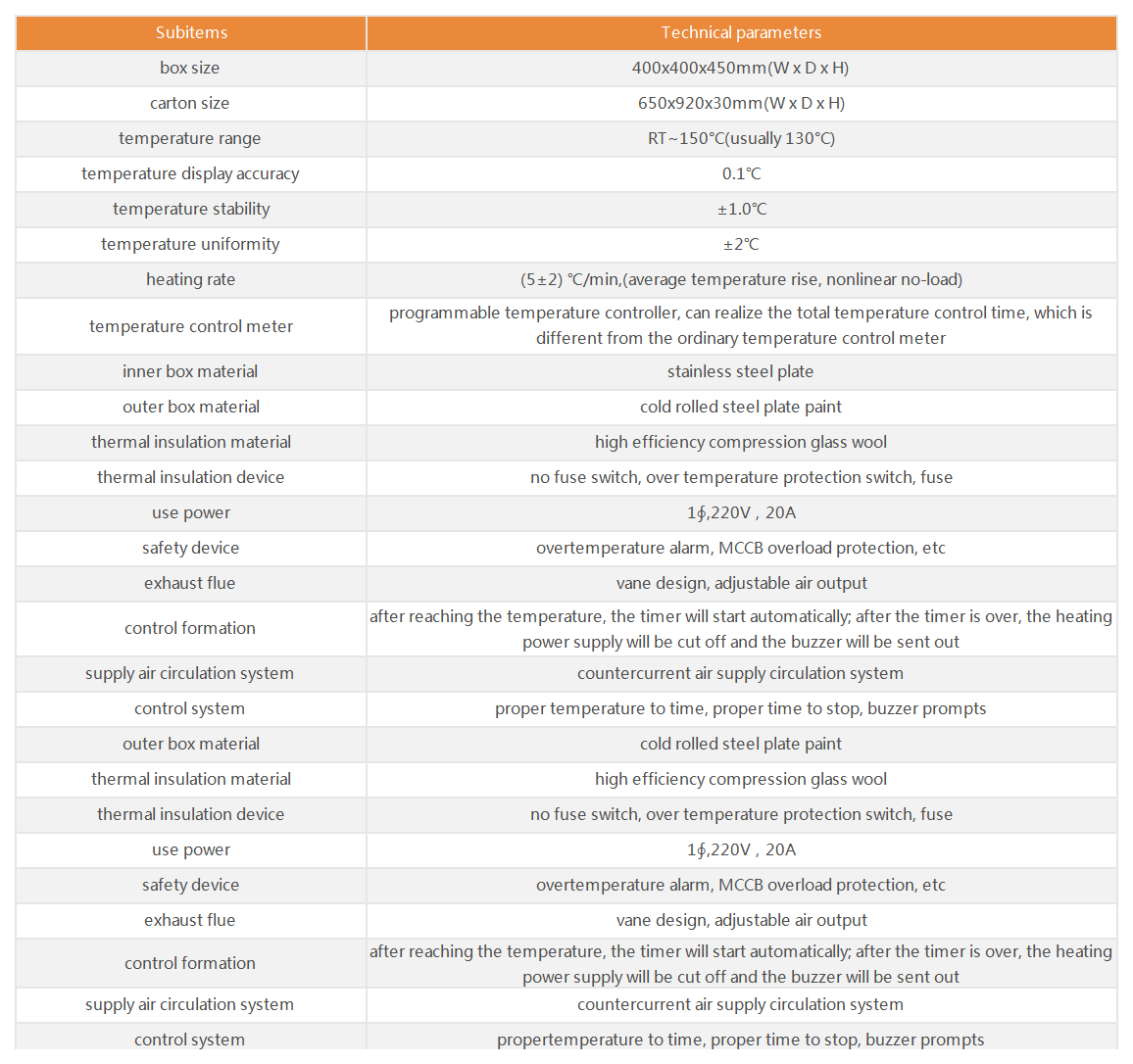

▊  Product Parameters
