Product model：DS-1000-3
Inside dimension：Ф2200mm×3450mm
Gross weight：about 4.5T
▊ Product introduction
The walk-in comprehensive lab module can build a composite experimental environment (high temperature, low temperature, high altitude, salt spray) for temperature cycle experiments, corrosion resistance experiments, reliability experiments of large parts, and thermal runaway experiments of batteries.
▊ Functional characteristics
●High temperature environment：
Overall maximum ambient temperature: 85℃；
Heating rate: 1℃/min；Maximum temperature of local table: 600℃；
Maximum temperature rise rate: 10℃/min；
According to standards: GB/T 2423.2-2008, IEC60068
●Low temperature environment：
Minimum temperature: -50℃, cooling rate 1℃/min；
According to standards: GB/T 2423.1-2008, GB/T 38031-2020
●High altitude environment：
Minimum air pressure: 55kPa (A) (approximately 4850m above sea level)；
According to standard: GB/T 31467.3-2015
●Salt spray environment：
Brine concentration: 5±0.1%, pH value: 6.5~7.2；
Brine temperature: 35±1℃；According to standard: GB/T 2423.18-2021

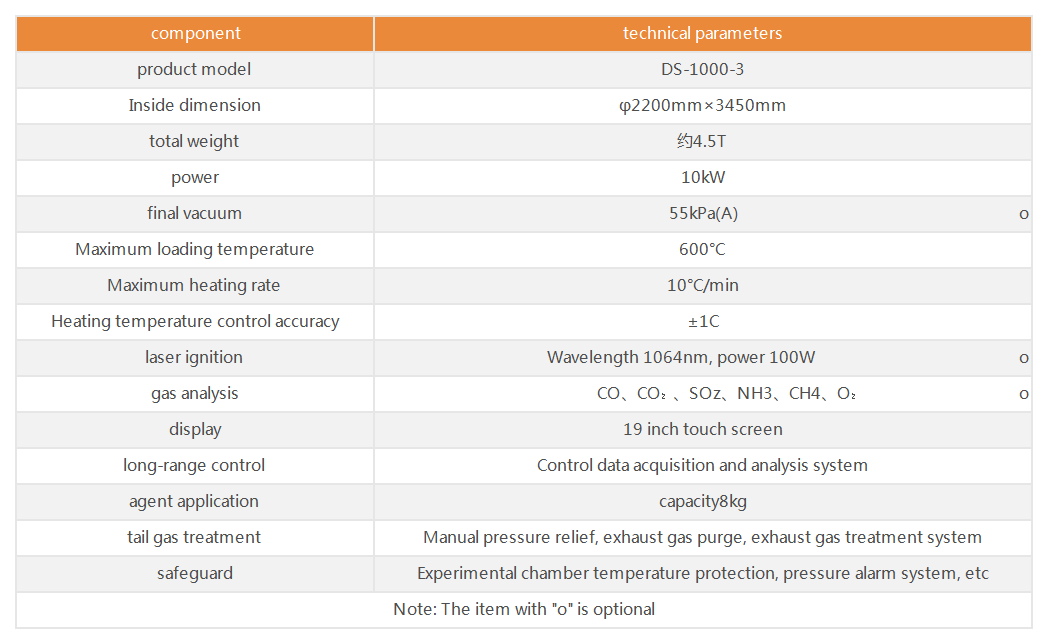

▊ Technical parameters
