▊  Product introduction

The laser igniter has the advantages of good cold start performance, adjustable ignition position,controllable ignition time and ignition energy, etc. It is used for thermal runaway, ignition detonation, combustion and other tests of gas, liquid and solid (solid propellant ignition test,

magnesium-aluminum powder ignition test, pulverized coal particle ignition test).

▊  Functional characteristics

●One-click start:

To realize the one-key ignition function,

ignition time can be controlled for 1s to 30s

●Adjustable power:

Adjust the power as required, controllable range: 0~100%

●Multiple communication interfaces:

USB communication interface, RS485 serial port communication mode,

can achieve remote control and video surveillance

●Synchronous trigger:

Synchronously trigger devices such as high-speed camera,

and the response time can be set

●Laser head:

The positions of X, Y, Z axes are adjustable, accuracy can be up to 0.1mm

The pitch angle is adjustable, the accuracy can be up to 0.1°

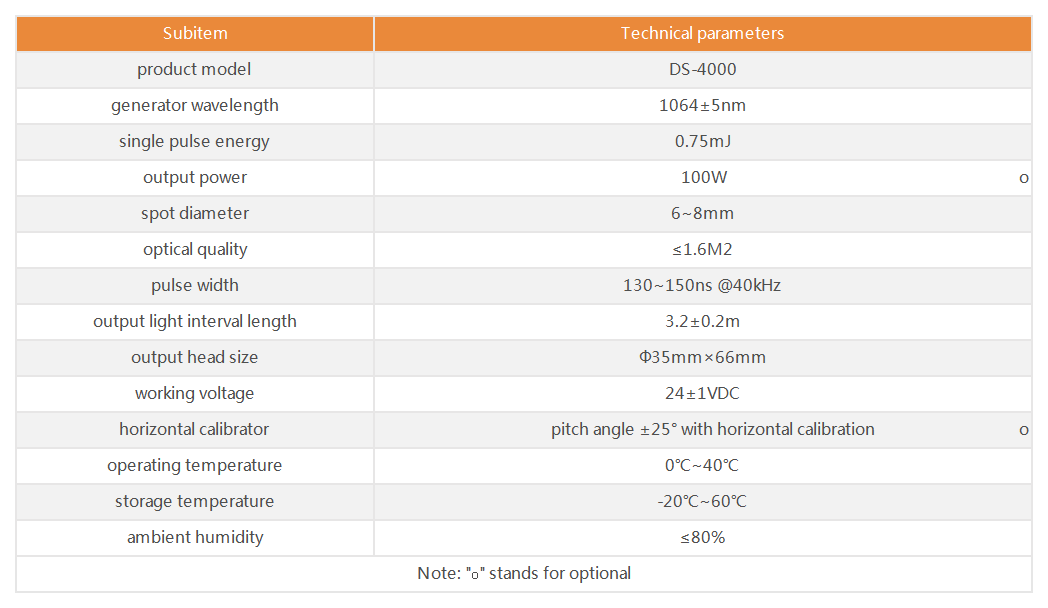

▊  Technical parameters
