Model：DS-9400-150
Outer box size：1920mm×1550mm×1600mm
Lnner box size：500mm×600mm×500mm
Cavity volume：150L
▊ Product introduction
Hot and cold impact test box can be quickly converted from high temperature to low temperature, can test composite materials, electronic, electrical products, military equipment, etc., instant experience of extreme high temperature and low temperature continuous environment tolerance degree, can quickly detect the sample due to thermal expansion and contraction of chemical changes or physical damage. Used for product reliability test, product screening test, adaptability test under the condition of rapid temperature change.
▊ Typical application
1) Temperature shock test
2) Hot and cold cycle test
3) Storage temperature shock test
▊ Application fields：Semiconductor chips, new energy, optoelectronic communications, aerospace, national defense, military, automotive, medical and other industries.
▊ Functional characteristics
●High temperature environment:
Maximum temperature: 200℃, heating rate: about 5℃/min
According to standards: GB/T2423.2-1989, GJB150.5-86
●Low temperature environment:
Minimum ambient temperature: -65℃, cooling rate: about 1℃/min
Refrigerant: R-507/R-23(Environmental protection)
According to standards: GB/T2423.1-1989, GB/T2423.22-1989
●Hot and cold shock:
2 - or 3-slot functions are available
It has the function of high and low temperature testing machine

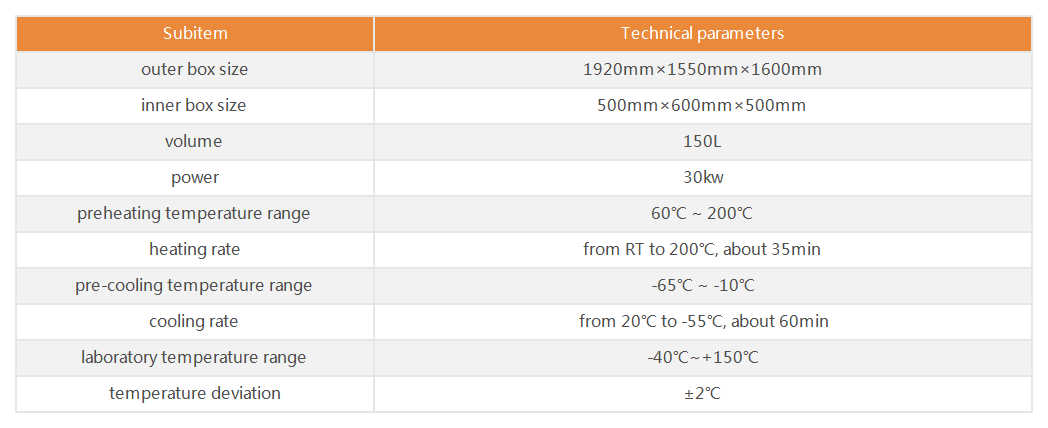

▊ Technical parameters
